Balcony Power Station Mount for Round & Square Railings – Solar Panel, 3 Brackets, Balcony Railings up to 6x6 cm, Secure Photovoltaic Mounting

• Versatile & no drilling required: Fits round and square railings—easy clamp installation with minimal tools, ideal for renters or retrofits.
• Infinitely adjustable: The rails can be adjusted to 91–122 cm—suitable for many standard solar modules with a frame height of 3 cm or more.
• Securely fastened: Double clamping at the top and bottom with protective rubber pads—stable, weatherproof, and capable of supporting up to 25 kg for modules up to 2 m².
• Optimal alignment: 3 angle settings—vertical 0°, 15°, or 30°—for better solar yield even under limited conditions.
• Complete Set: Includes brackets, rubber pads, extension rails, and instructions—suitable for wind load zone 2 at heights up to 10 m.

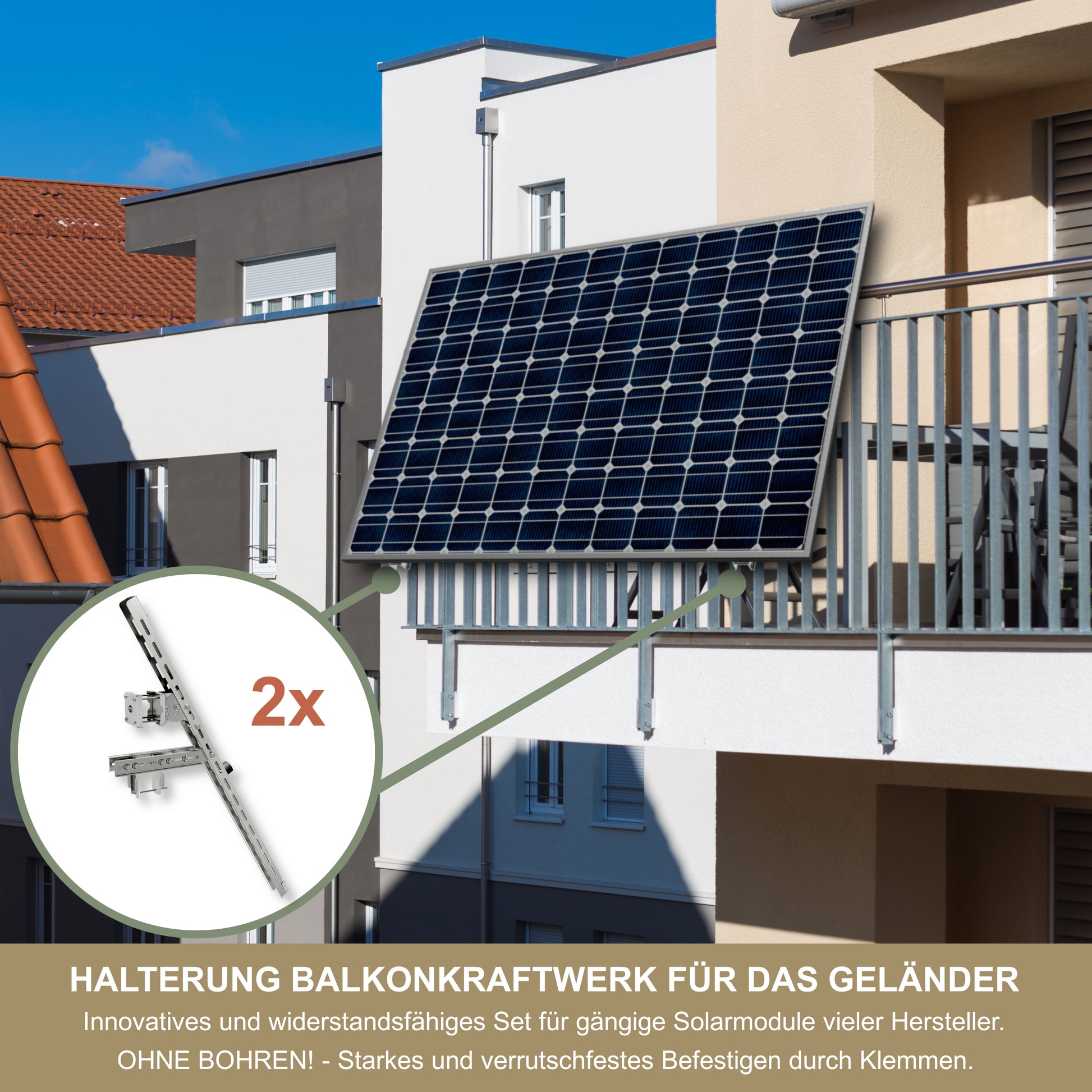

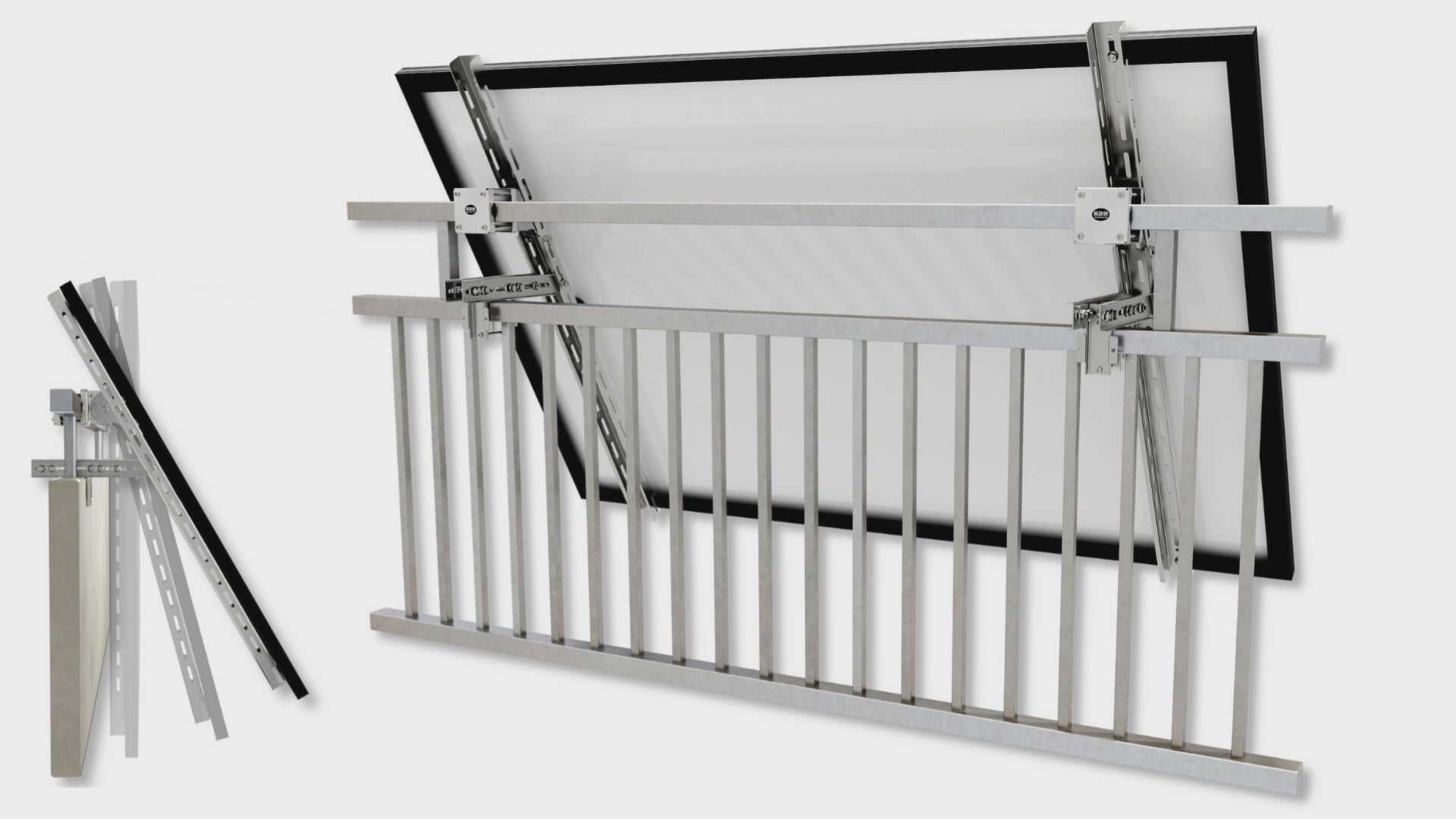

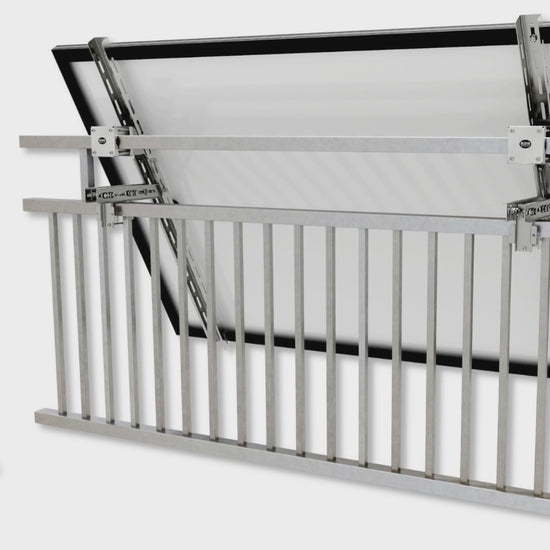

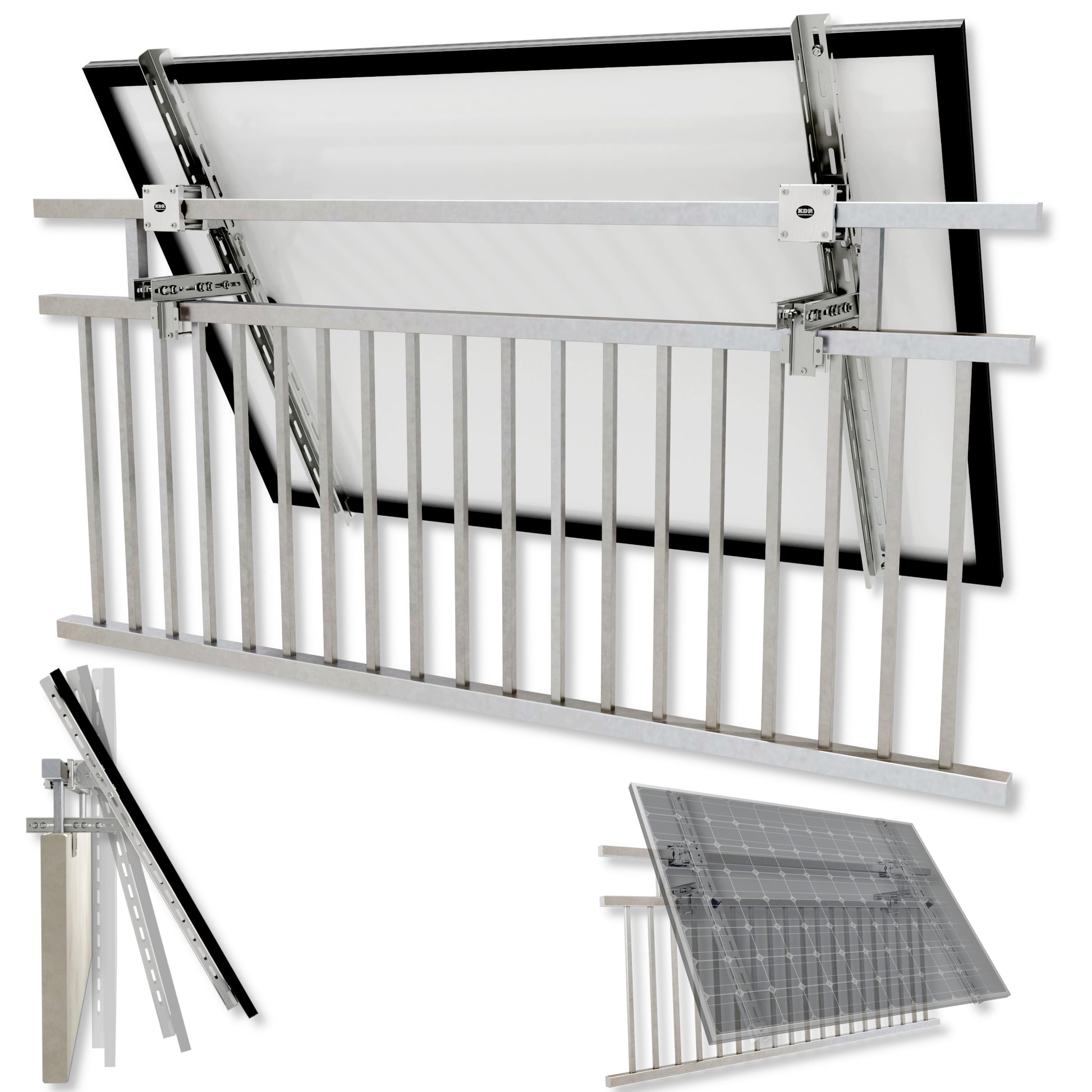

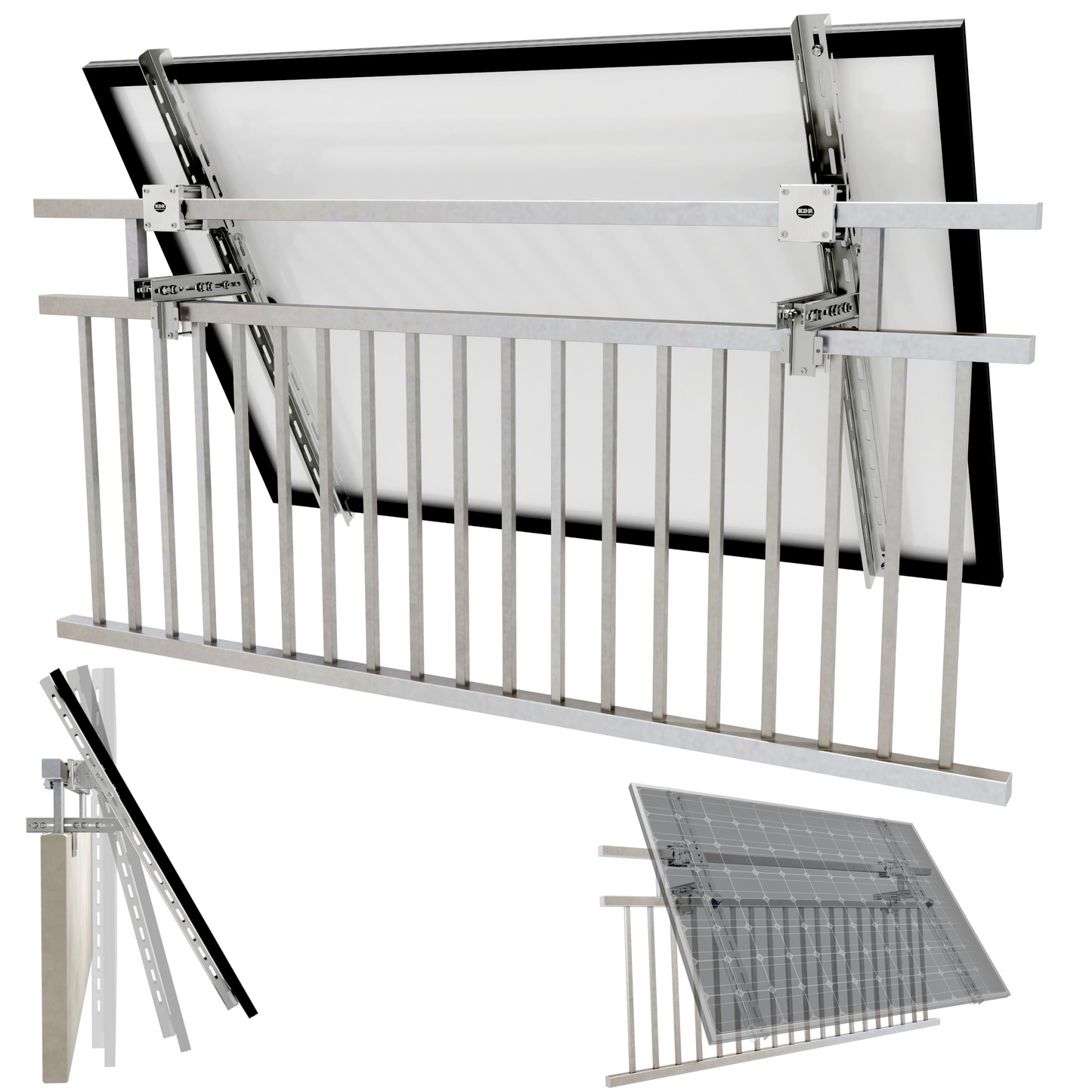

Custom installation – professional energy generation: The mounting bracket for balcony solar systems from KDR Produktgestaltungoffersyou maximum flexibility when mounting your solar panel on your balcony railing—regardless of structural conditions or lease agreements. Whether round or square railing, whether wall-mounted or clamping to the balcony parapet —this universal solution makes installing your photovoltaic module easy, safe, and possible with just a few tools.

Made of solid, stainless stainless steel , this mounting set was specifically designed to meet the real-world demands of everyday use: changing weather conditions, limited space, a lack of drilling options, and varying railing diameters. This design addresses all these challenges with technical precision and durable construction—developed and tested in Baden-Württemberg.

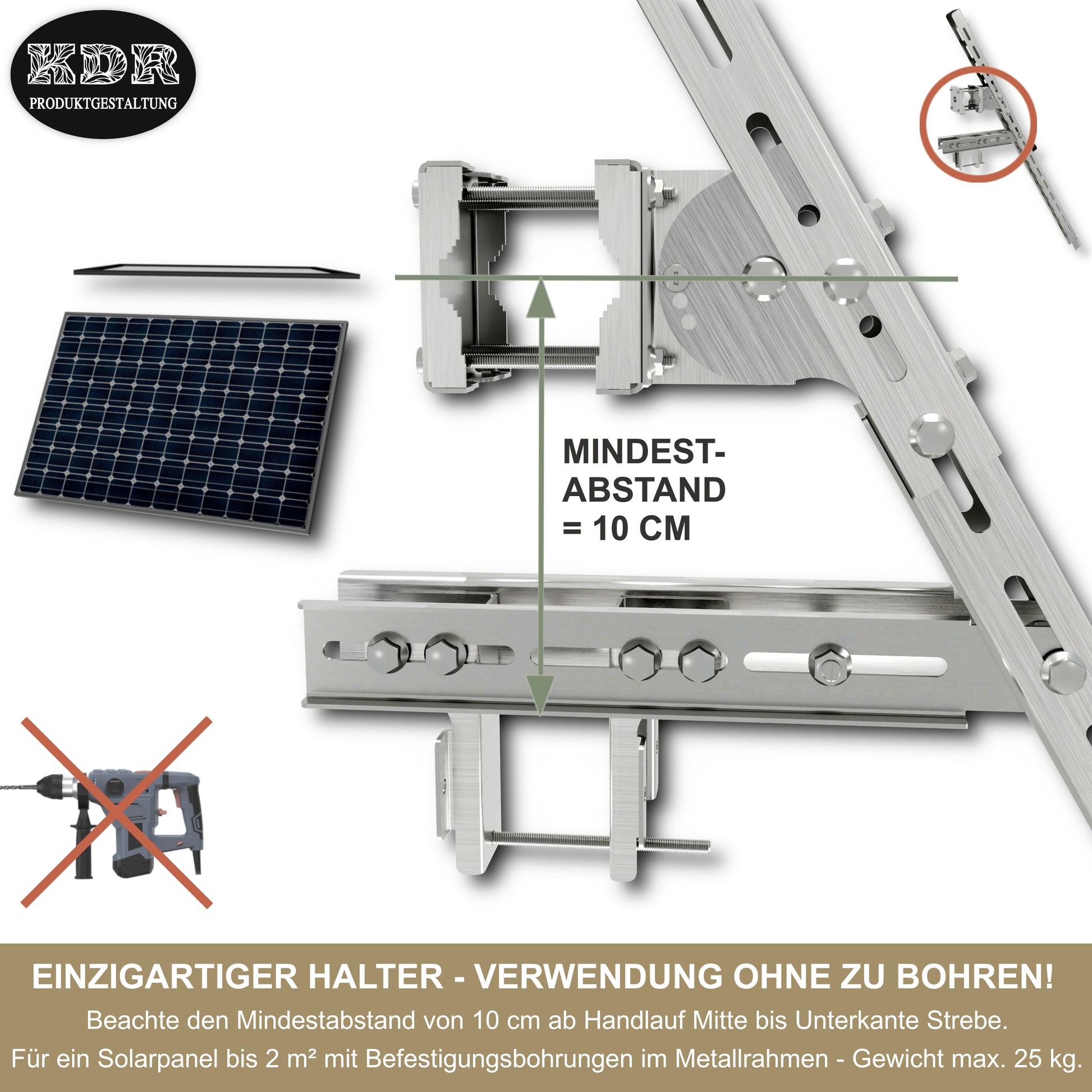

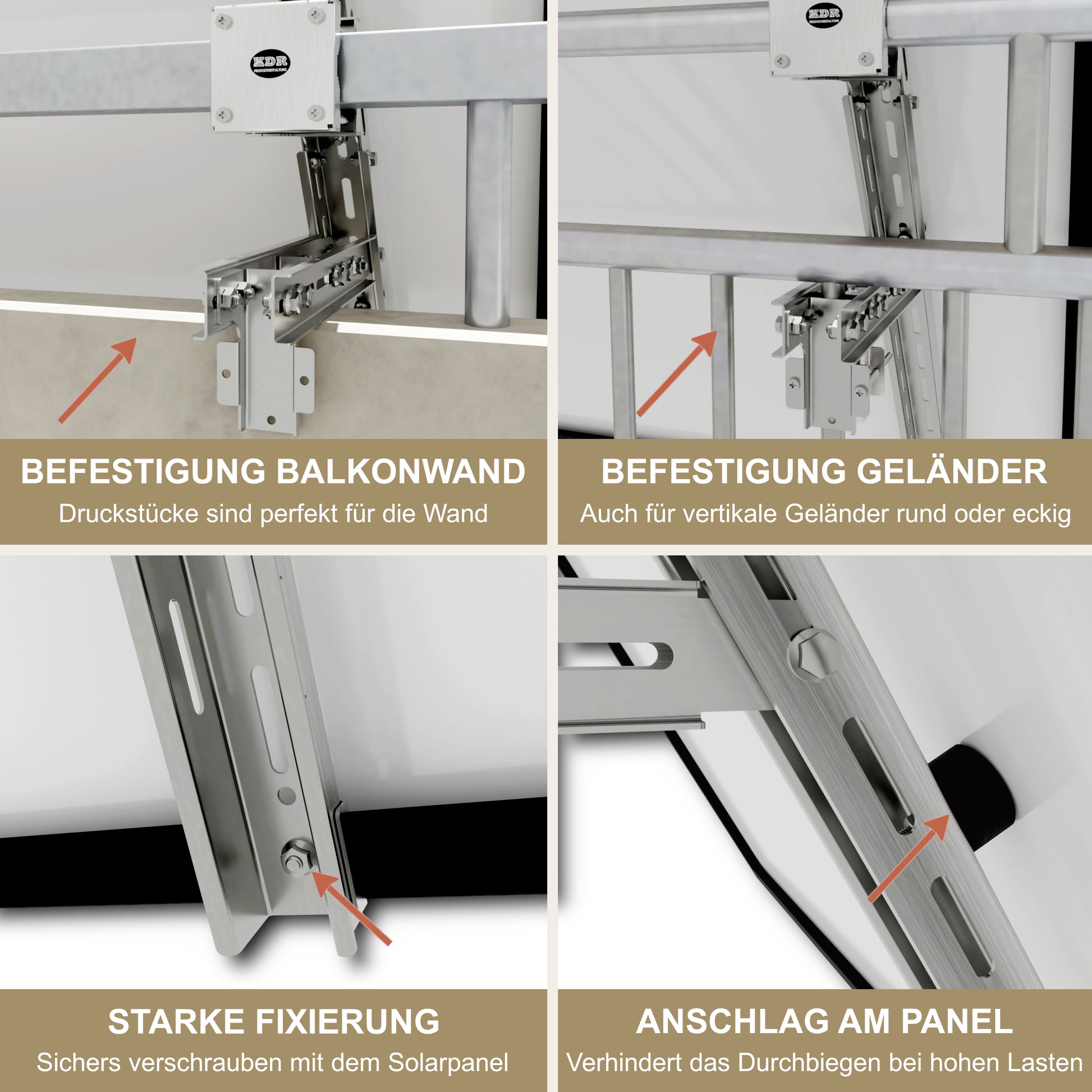

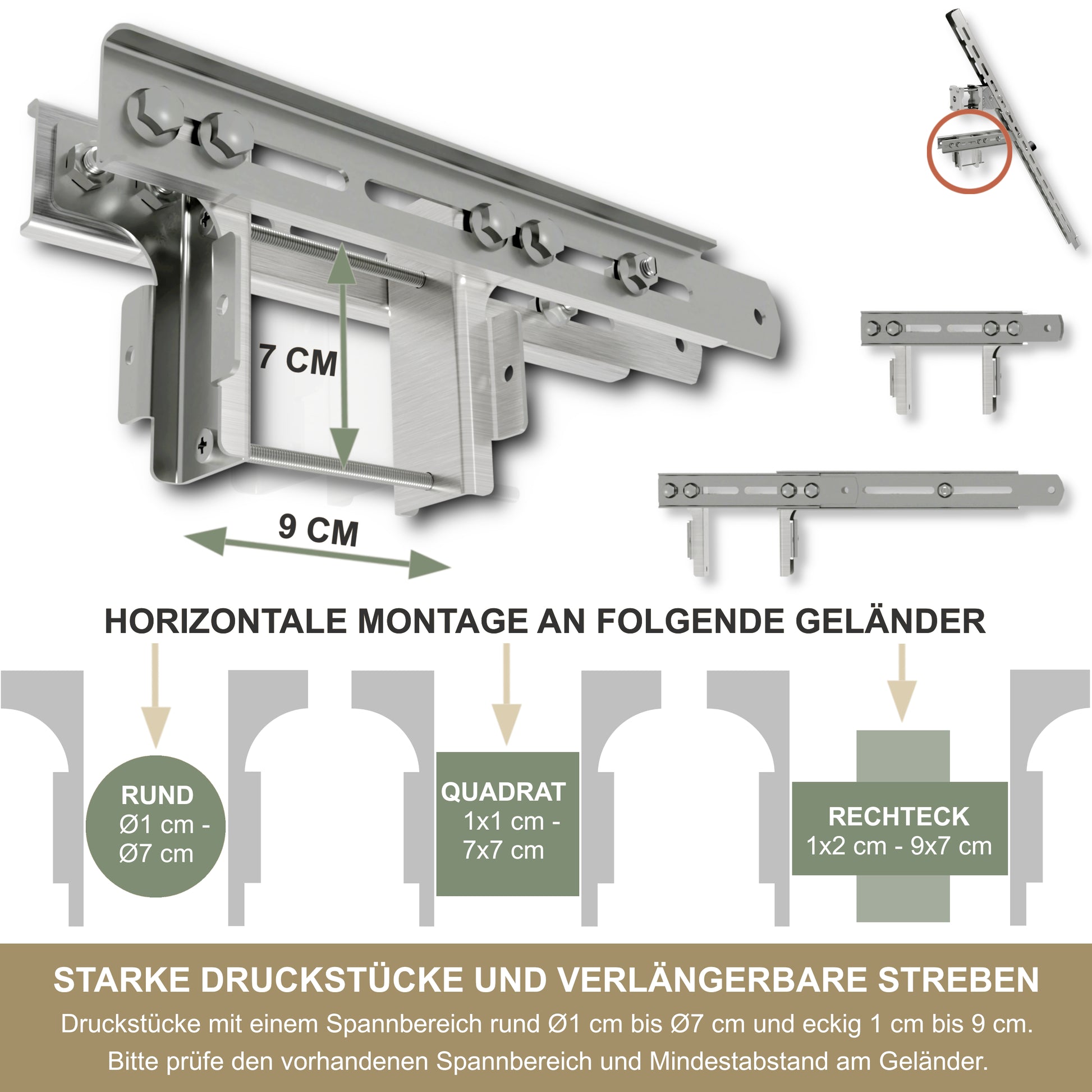

 s rails are individually adjustable in length(91–122 cm) and securely hold modules with frames at least 3 cm high, including mounting holes (M8). Two clamps—one at the top of the handrail and one at the bottom of the railing—securely hold the solar panel in place without damaging it. Soft protective pads and rubber straps prevent scratches, ensure a secure fit, and permanently protect your railing from indentations or corrosion. For bottom mounting, you can choose between horizontal, vertical, or wall-side mounting—whichever best suits your installation situation.

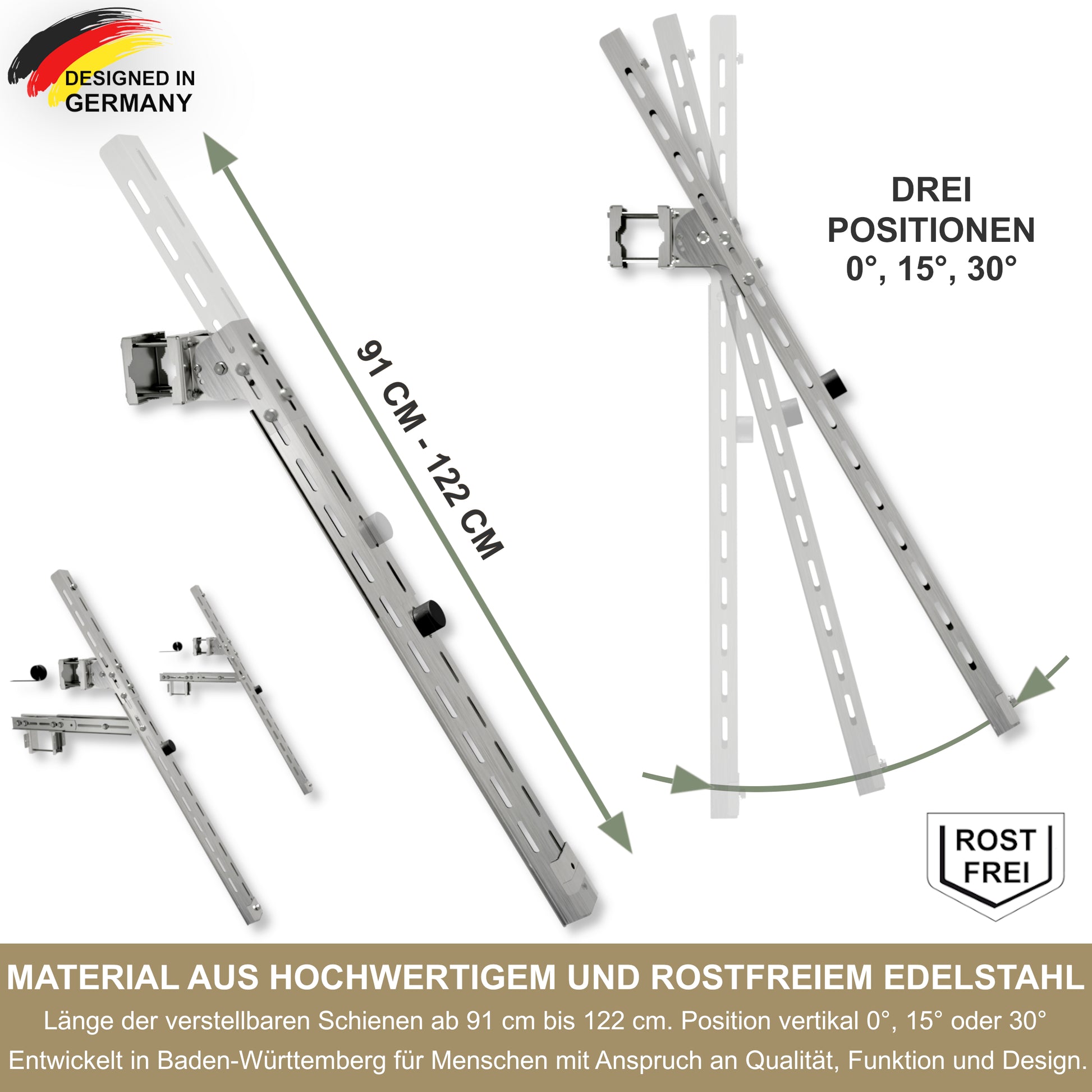

A special highlight is the 3-step tilt adjustment (0°, 15°, 30°), which allows you to perfectly align the panel with the sun’s position. This enables you to achieve a higher energy yield even with limited space or suboptimal angles. Combined with the sturdy construction designed for Wind Load Zone 2 and installation heights of up to 10 m , the set meets the highest standards for safety, functionality, and long-term durability—even in strong winds or frequent weather changes.

The package includes everything you need: two stainless steel brackets with adjustable rails, soft rubber pads, a flexible rubber strap to protect your balcony railing, and clear, practical installation instructions. Whether you’re just getting started with home energy generation or retrofitting existing solar panels—with this mounting system, you’re making a sustainable and forward-thinking choice for your home.

Technical Details:

• For modules: up to 2 m² / max. 25 kg / metal frame for M8 screws / frame height starting at 3 cm
• Rail length: 91–122 cm (adjustable)
• Tilt angle: 0°, 15°, 30°

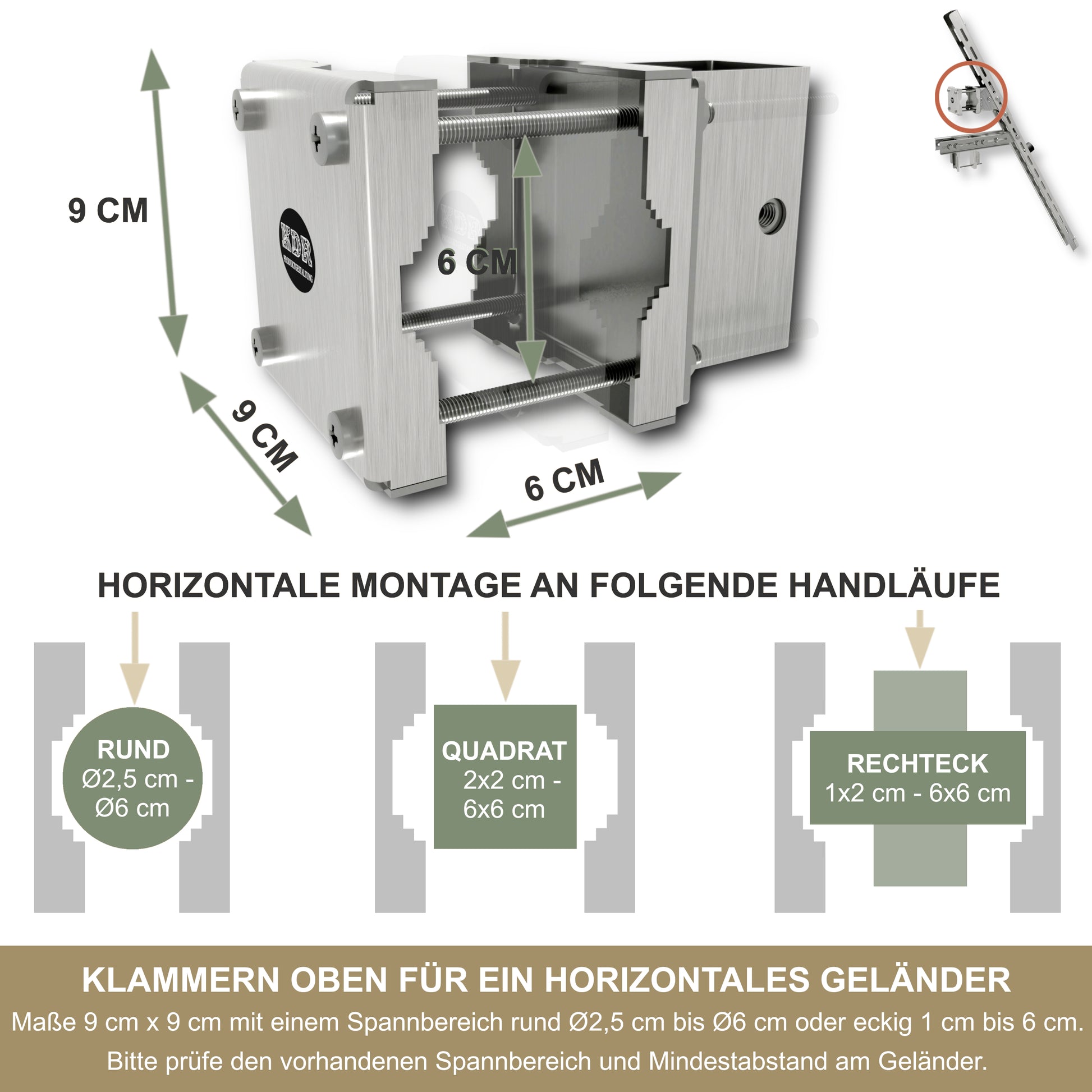

• Railing: round Ø 2.5–6 cm / square 2–6 cm
• Installation height: to 10 m / Wind load zone 2
• Installation: —no drilling required, few tools needed, includes protective rubber pads
• 2× Holder made of V2A stainless steel
• Detailed Assembly Instructions

KDR Product Design – developed in Baden-Württemberg for people who demand quality, functionality, and design.
